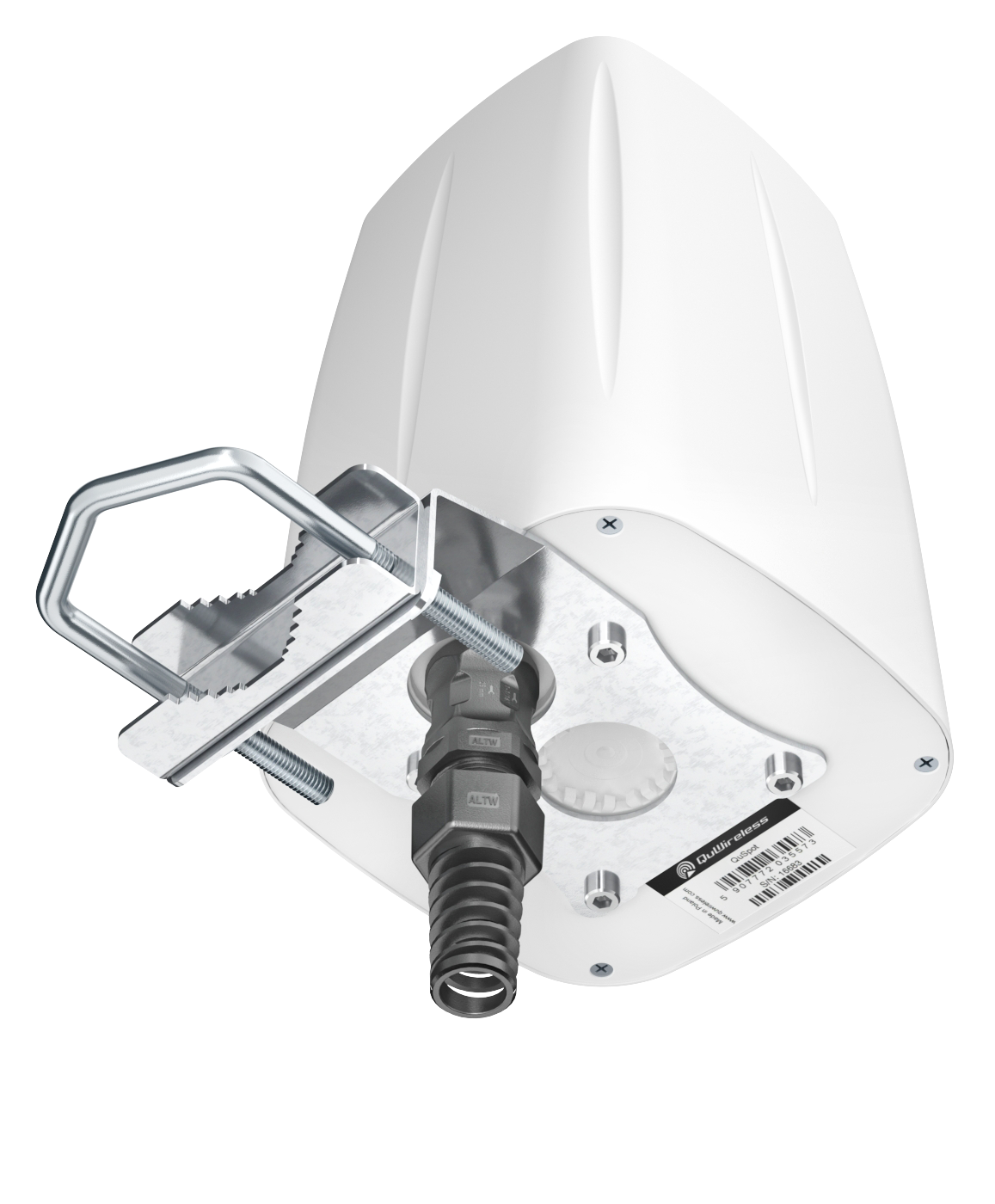

QuWireless AMUR32S

Integrated multi-band LTE omni antenna + WiFi omni antenna + GPS antenna

Eigenschaften
Beschreibung
Weitere Informationen
PDF

Outdoor antenna works in any weather conditions, IP67
Antenna perfectly matched with the router
Passive PoE support

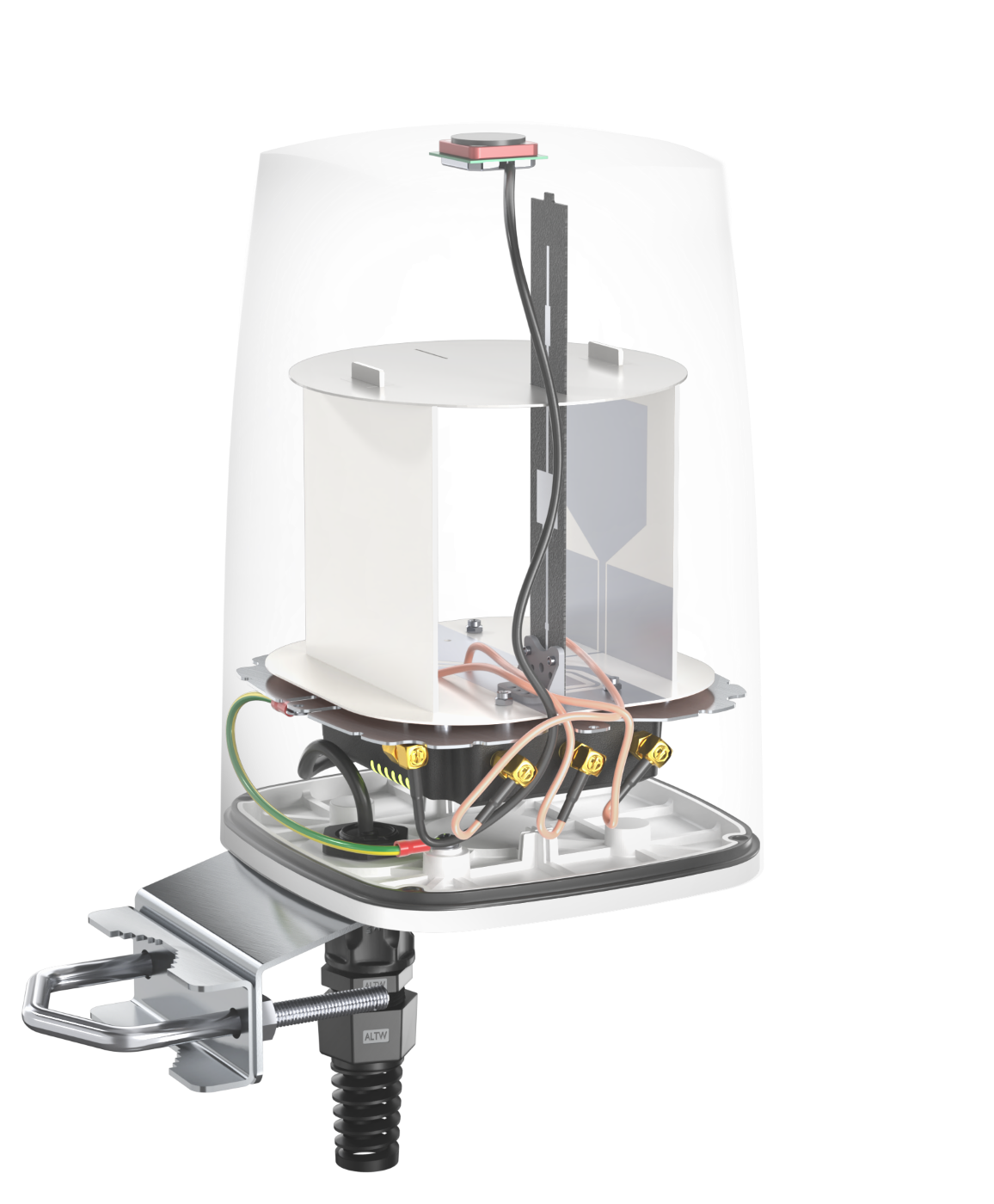

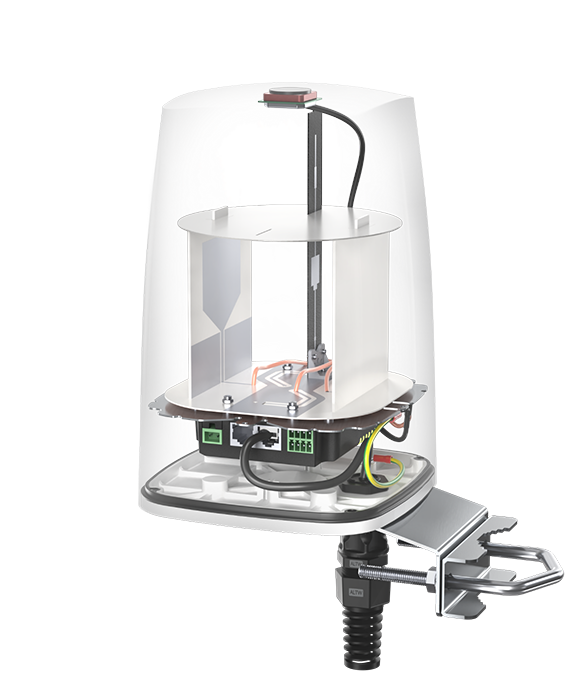

Integrated multi-band LTE omni antenna + WiFi omni antenna + GPS antenna + place to install Milesight UR32 (All-in-one)

QuSpot omni LTE antenna for Milesight UR32 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has embedded Wi-Fi dualband 2.4 & 5 GHz omni antenna. If you use UR32 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Specifications

LTE antenna specification
Frequency	694 - 960 MHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz
Gain	694 - 960 MHz : 2 dBi 1.7 - 2.2 GHz : 2 dBi 2.2 - 2.7 GHz : 4 dBi
Supported LTE/5G bands	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
VSWR	<1.60, max <2.00
Beamwidth	360°/35° ±5°
Polarization	Vertical
Impedance	50 Ω
Wi-Fi antenna specification
Frequency	2.4 - 2.5 GHz 5.0 - 7.2 GHz
Gain	2.4 - 2.5 GHz: 6dBi 5 GHz: 7.5dBi 7 GHz: 7.5dBi
VSWR	< 1.50, max < 2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω
Mechanical specification
Materials	ABS, aluminum, PTFE
Connector type	RJ45
Ingress protection	IP67
Dimensions	160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch
Weight	1.5 kg 3.31 lbs
Operating temperature	From -40°C to 80°C From -40°F to 176°F
Mast diameter	40-60 mm 1.57-2.36 inch
Frequency bands
LTE / 4G GSM	694 MHz / 960 MHz
LTE / 4G UMTS	1710 MHz / 2170 MHz
LTE / 4G WCS DARS	2300 MHz / 2400 MHz
LTE / 4G	2400 MHz / 2700 MHz

QuWireless AMUR32S Datasheet (4469.0 kB)
