Advantech ARK-3531

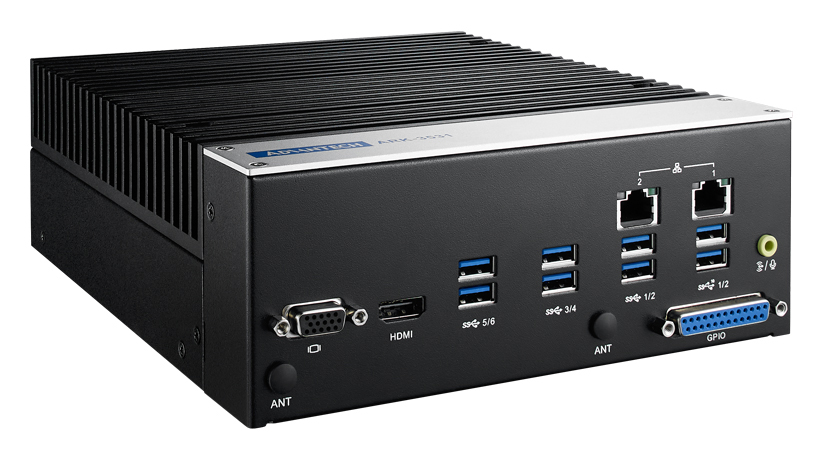

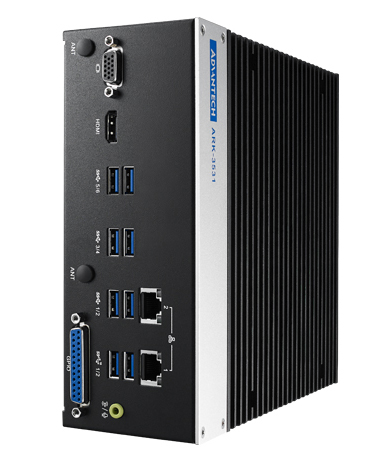

Intel® 8th and 9th Gen Core™ i3/i5/i7/i9 LGA1151 Fanless Box PC
Eigenschaften
Beschreibung
Weitere Informationen
Ähnliche Produkte
Seite drucken
Preis anfragen
zeige Notizliste
PDF
Eigenschaften
Beschreibung
Weitere Informationen
PDF
- Supports Intel® 8th and 9th Gen Core™ i3/i5/i7/i9 35W processor

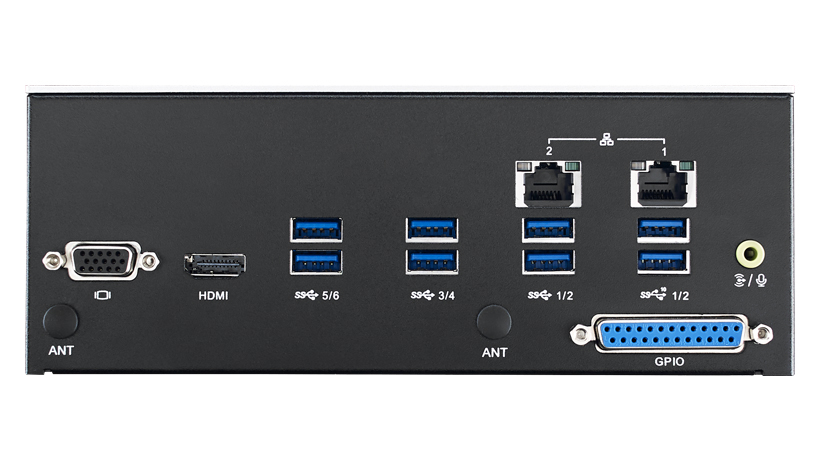

- Dual display: VGA + HDMI
- DDR4 SO-DIMM memory support up to 64 GB
- 9-36VDC wide range power input
- Versatile I/Os including 2 x USB 3.1, 6 x USB 3.0 and 8 x COM ports
- Support 2 internal 2.5" Hard Drive bays (Intel SW RAID 0/1)
Intel® 8th and 9th Gen Core™ i3/i5/i7/i9 LGA1151 Fanless Box PC
Specification
- Processor System
| CPU | i9-9900T | i7-9700TE | i5-9500TE | i3-9100TE | G4900T |
| Frequency | 2.1GHz-4.4GHz | 1.8GHz-3.8GHz | 2.2GHz-3.6GHz | 2.2GHz-3.2GHz | 2.9GHz |
| L3 Cache | 16MB | 12MB | 9MB | 6MB | 2MB |
| Core | 8 | 8 | 6 | 4 | 2 |
TDP
35W
Chipset
H370 (Q370 support by TPN)
BIOS
AMI EFI 128Mbit
Memory
- Technology
DDR4 2666 MHzMax. Capacity64 GBSocket2 x 260-pin SO-DIMM
Graphics
- Chipset
Intel® UHD Graphics 630
Graphic Engine
Direct x 12, OpenGL 4.4
HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8.
HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
VGA
2048x1280@ 60Hz
HDMI
1 HDMI port, HDMI 1.4 for HD video playback, 3840x2160@30Hz
Flexible Display (by TPN project)
HDMI+HDMI, VGA+DP, HDMI+DP
Ethernet
- LAN1
10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
LAN2
10/100/1000 Mbps Intel I210GbE, support wake on lan
LAN3/LAN4 (by TPN project)
10/100/1000 Mbps Intel I210GbE, support wake on lan
Audio
- Interface
Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch)
Others
- Watch dog Timer
255-level timer interval, setup by software
TPM
Onboard TPM 2.0
I/O Interface
- Serial Port

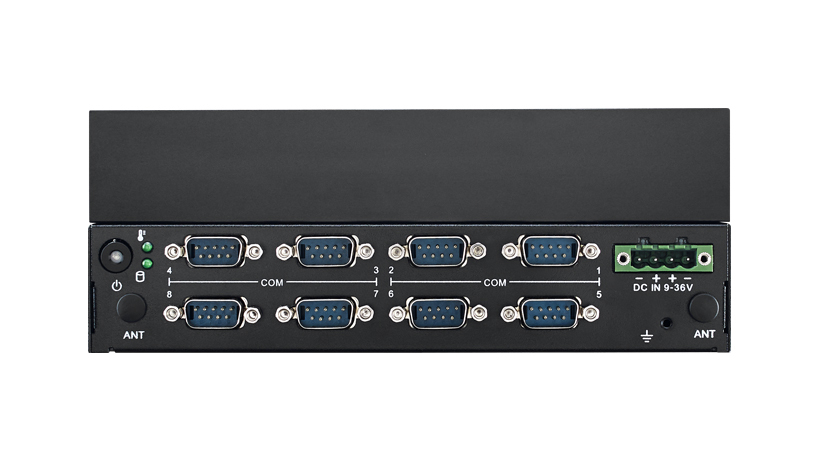

4 x RS-232, 4 x RS-232/422/485 port with auto flow control;
COM 1 support 5V/12V power supply (by jumper)
USB
2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A)
GPIO
16bit DIO
Expansions
- Mini PCIe
1 x Full-size MiniPCIe (support mSATA, support SIM holder, Optional AMO-I026 to supports m.2 B+M key 2280)
M.2
1 x E key 2230 for WiFi
Storage
- HDD
2 x 2.5" SATAIII HDD Bay with Max Height 9.5mm (Supports Intel SW RAID 0/1)
mSATA
1 x mSATA socket (Share with Mini PCIe)
Software Support
- Microsoft Windows
Windows 10
Linux
By Project Support
Power Requirements
- Power Type
AT/AT
XPower Input Voltage
9-36V
Power Adapter
AC to DC, 150W (Optional)
Power Consumption (CPU/Memory Only)
- Typical
16.8W
Max.
34.8W
Mechanical
- Construction
Aluminum housing
Mounting
Desk mounting
Dimensions (W x H x D)
200 x 75 x 215 mm
Weight
3.2 Kg
Environment
- Operating Temperature
35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow
Storage Temperature
-40 ~ 85° C
Relative Humidity
95% @ 40° C (non-condensing)
Vibration During Operation
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock During Operation
With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
EMC
CE/FCC Class B, CCC, BSMI
Safety
CB(62368), UL(62368), CCC, BSMI
