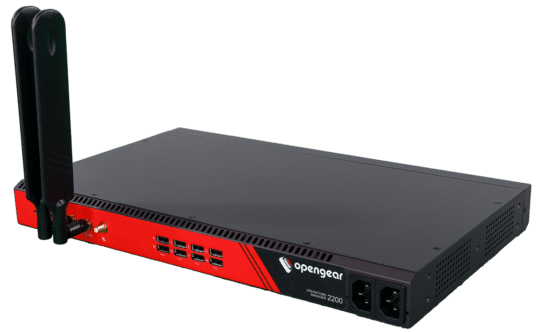

Opengear OM2200 Series

Opengear OM appliances combine the capabilities of a Smart OOB? Console Server with the flexibility of Automation.

The OM2200 appliance, managed through our Lighthouse software, is configured for data centers and high density locations. Integrated into Opengear?s Network Resilience Platform, it provides a separate, secure management plane which supports advanced automation applications.

Technical Specifications

Console Specifications

• OM2216: 16 x RJ45 RS-232 Software Selectable Straight or Rollover Pinout Console Management Ports
• OM2232 32 x RJ45 RS-232 Software Selectable Straight or Rollover Pinout Console Management Ports
• OM2248 48 x RJ45 RS-232 Software Selectable Straight or Rollover Pinout Console Management Ports
• OM2248-10G-M-L 48 x RJ45 RS-232 Software Selectable Straight or Rollover Pinout Console Management Ports, PSTN Modem
• OM2224-24E 24 x Selectable RJ45 RS-232 Ports and 24 x Managed 10/100/1000 Base-T Switched Ethernet Ports

Interfaces

• Primary/Secondary Network Ports:
  • 2 x 10/100/1000 Ethernet/SFP Fiber auto-media ports (1GbE chassis)
  • 2 x SFP+ (10G only) Fiber and 1 x 10/100/1000 Base-T Ethernet (10 GbE chassis)
• Local Console Ports: 1 x micro USB 2.0 Console Port and 1 x RJ45 Serial (Straight Pinout)
• Managed Serial Ports: 16, 32, or 48 x RJ45 RS-232 Software Selectable 50 to 230,400 bps Console Ports
• PSTN Modem (OM2248-10G-M-L only): 1 x Internal V.92 modem with RJ11 Socket
• USB Ports 2 x USB 3.0 Host Ports for storage and 8 x USB 2.0 ports for device console management
• Managed Switch Ethernet Ports 24 x managed 10/100/1000 Base-T switched Ethernet Ports (-24E models)

Power Requirements

• Dual AC Power Inputs: Dual IEC 60320 Socket Universal 100-240V AC 50/60Hz and IEC C14 side connectors
• Dual DC Power Inputs: +/- 40V to 72V DC, 1.5A-0.75A (X 2), 48V Nominal
• Power Consumption:
  • Serial Port models 1.6 A max
  • Mixed Port models 1.6 A max

Physical Dimensions

• Dimensions: 17.25 x 10.25 x 1.75 in, 44 x 26 x 4.5 cm
• Weight: 3.5 kgs 7.7 lbs
• Form Factor: 1RU

Memory and CPU

• CPU: AMD GX-412TC 1.4 Ghz, 4-core 64-bit x86
• Memory: 8 GB DDR3 RAM
• Boot ROM: 16 MB SPI with password protection
• Internal Storage M.2 SATA III 64 GB SSD

Environmental

• Operating Temperature: 5°C to 50°C, 41°F to 122°F
• Storage Temperature: -30°C to +60°C, -22°F to +140°F
• Humidity: 5% to 90%
• Cooling: Passive Cooling - can be forward or reverse mounted to suit best airflow

Security, Encryption & Authentication

• Trusted Platform Module 2.0
• AAA - TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos, with local fallback
• Embedded Firewall
• IPSec and OpenVPN

Automation & Scalability

• Opengear NetOps Modules
• Docker support
• Python
• Perl and bash support
• ZTP
• SNMP-Standard MIBs

Global LTE Cellular Interface

• Modules: OM22xx-L - Sierra Wireless EM7565
• Speed: CAT12
• Coverage: Global LTE-A Support

Certifications

• Cellular: PTCRB, GCF, Verizon and AT&T
• Emissions: EN55032: 2015 Class A
• Immunity: EN61000-4-2, -4-3:2006+A1: 2006+A2:2010, -4-4: 2007, -4-5: 2014, -4-6:2008, -4-8: 2009, -4-11: 2010, -4-28: 2010 EN61000-3-2: 2014, EN61000-3-3: 2013
• Other Agency Approvals EC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013 EN60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 100,000 hours

Warranty

• 4 Years hardware and support

Available Models

Every OM2200 model shares the following features:

• 1 RU form factor
• 1.4 GHz 4-Core x86 CPU
• 8 GB DDR3 RAM
• 64GB Internal Storage
• 2 USB 3.0 and 8 USB 2.0 ports
• RS-232 software selectable straight or rollover pinouts

Model	Managed Ports	Platform	SFP	Cellular
OM2216	16 Serial Ports	1GbE	2 x 10/100/1000 Ethernet/SFP Fiber Ports	No
OM2216-L	16 Serial Ports	1GbE	2 x 10/100/1000 Ethernet/SFP Fiber Ports	Global 4G LTE
OM2232	32 Serial Ports	1GbE	2 x 10/100/1000 Ethernet/SFP Fiber Ports	No
OM2232-L6	32 Serial Ports	1GbE	2 x 10/100/1000 Ethernet/SFP Fiber Ports	Global 4G LTE
OM2248	48 Serial Ports	1GbE	2 x 10/100/1000 Ethernet/SFP Fiber Ports	No
OM2248-L	48 Serial Ports	1GbE	2 x 10/100/1000 Ethernet/SFP Fiber Ports	Global 4G LTE
OM2248-10G	48 Serial Ports	10GbE	2 x SFP+ Fiber and 1 x 10/100/1000 Base-T Enternet Ports	No
OM2248-L	48 Serial Ports	10GbE	2 x SFP+ Fiber and 1 x 10/100/1000 Base-T Enternet Ports	Global 4G LTE
OM2224-24E	24 Serial Ports +24 Ethernet Ports	1GbE	2 x 10/100/1000 Ethernet/SFP Fiber Ports	No
OM2224-24E-L	24 Serial Ports +24 Ethernet Ports	1GbE	2 x 10/100/1000 Ethernet/SFP Fiber Ports	Global 4G LTE
OM2224-24E-10G	24 Serial Ports +24 Ethernet Ports	10GbE	2 x SFP+ Fiber and 1 x 10/100/1000 Base-T Enternet Ports	No
OM2224-24E-10G-L	24 Serial Ports +24 Ethernet Ports	10GbE	2 x SFP+ Fiber and 1 x 10/100/1000 Base-T Enternet Ports	Global 4G LTE

Package Checklist

• Operations Manager OM2200
• 2 x Country-specific A/C Power Cords
• 1 x Rack Mount Kit (590037)
• 1 x CAT5 Cable 6′
• 1 x DB9F - RJ45 Crossover (319015)
• Start-Up / Safety Instructions Card
Cellular enabled models also include:
• 2 x Cellular Antennas (569041)
• 1 x Cellular Antenna Extender with magnetic base (449041)

Part Number	Description
319014	Adapter - DB9F to RJ45 straight serial - DCE -For X2 Pinout
319015	Adapter - DB9F to RJ45 crossover serial - DTE -For X2 Pinout
319016	Adapter - DB9M to RJ45 straight serial - DCE - For X2 Pinout
440016	Cable - Straight through CAT5 - 6' length
590037	Rack Mount Kit - Ears and Screws
449041	Antenna Extender - Magnetic Base with 10' Cable
569041	Antenna - Blade LTE-A with swivel base

Part Number	Description
Included	4 year Standard Warranty
OGEXTWAR5-OM22	Warranty OM2200 (Extends to 5th year warranty)
OGEXTWAR6-OM22	Warranty OM2200 (Extends to 6th year warranty)
