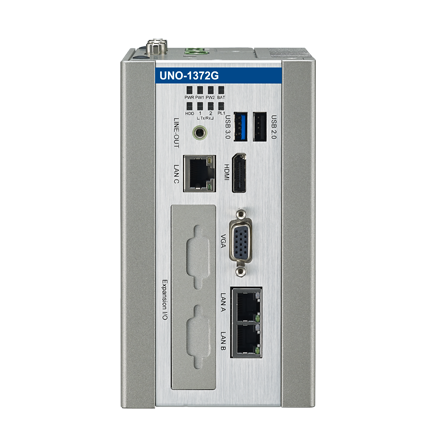

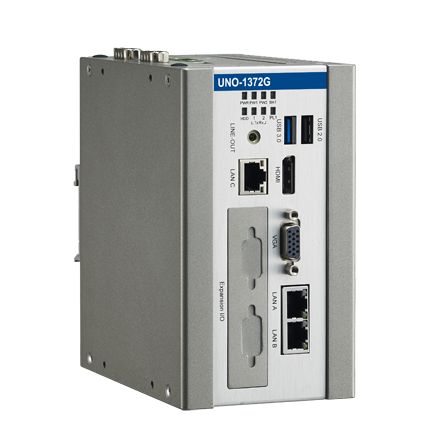

Advantech UNO-1372G
Intel® Atom™ Quad-Core Small Size Control DIN-rail PC w/ 3 x GbE, built-in 4GB DDR3L, 2 x mPCIe, 1 mSATA, 2 x COM, 8 x DI/O, 3 x USB, HDMI, VGA
Eigenschaften
Beschreibung
Weitere Informationen
Ähnliche Produkte
Seite drucken
Preis anfragen
zeige Notizliste
PDF
Eigenschaften
Beschreibung
Weitere Informationen
PDF
- Intel® Atom E3845 1.91GHz processor with 4GB DDR3L Memory

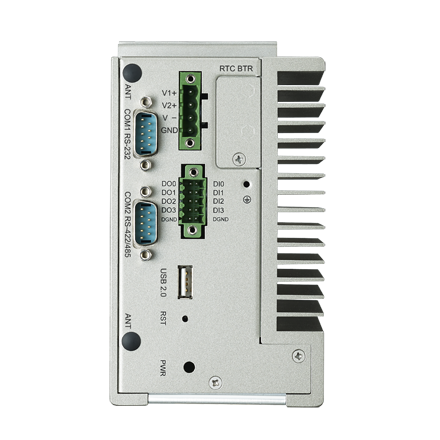

- 3 x GbE, 3 x USB, 2 x COM, 1 x VGA, 1 x HDMI, Audio, iDoor, mSATA, 2 x mPCIe, 1 x SATA, 4 x DI, 4 x DO, 1 x Power Terminal
- Compact with Fanless Design
- Dual Power Input for avoiding Power Down Time
- Exchangeable RTC Battery with easy Access on the Top
- Digital I/O with Isolation Protection for Sensing and controlling
- Diverse system IO and Supports Fieldbus Protocol by iDoor Technology as a Protocol Gateway
- 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology as a Communication Gateway
- Supports MRAM by iDoor Technology
- LAN Redundancy (Teaming)
The UNO-1372G is an Intel Atom Quad-Core DIN-Rail controller. This controller featured with dual power input that shorten the down time to enhance operation excellence. The general purpose input/output ports also help machine builders integrate direct control of start/stop inspection and indicate inspection results. The UNO-1372G is also equipped with Advantech iDoor technology that uses iDoor modules to extend this product to become a gateway controller, such as a PoE card, or isolation serial port card. The UNO-1372G also features 3 gigabyte LAN ports, 1 USB 3.0 port, 2 COM ports and HDMI& VGA display ports for essential upstream and downstream links, for example, PoE connected to IP camera from iDoor.
Specifications
- General
- Certification
CE, FCC, UL, CCC, BSMI
Dimensions ( W x D x H )
85 x 139 x 152 mm (3.3" x 5.5" x 6.0")
Form Factor
Small Size
Enclosure
Aluminum Housing
Mounting
DIN-rail, Wallmount
Weight (Net)
1.6kg (3.5lbs)
Power Requirement
9~36VDC (Recommend 12/24 VDC)
Power Consumption
24W (Typical), 50W (Max)
OS Support
Microsoft® Windows 7/8/10, WES7, AdvLinux
System Hardware
- BIOS
AMI UEFI 128Mbit Flash BIOS
Watchdog Timer
Programmable 255 levels timer interval, from 1 to 255 sec
Processor
Intel Atom E3845 1.91GHz, 2MB L2 Cache
System Chip
Integrated Intel SoC Chipset
Memory
Built-in 4GB DDR3L 1333 MHz (Up to 8GB)
Graphics Engine
Intel® HD Graphics
Ethernet
LAN A, B: Intel® i210-IT GbE, 802.1Qav, 802.1AS, 802.3az
LAN C: Realtek RTL8111E GbE
LED Indicators
LEDs for Power, battery, LAN (Active, Status), COM (Tx/Rx), HDD and programmer LED
1 x mSATA
Storage
One drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD)
Expansion
2 x Full-size mPCIe slot
I/O Interfaces
- Serial Ports
1 x RS-232, DB9, 50~115.2kbps
1 x RS-422/485, DB9, auto flow control, 50~115.2kbps
LAN Ports
3 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet
USB Ports
3 x USB Ports (2 x USB2.0, 1 x USB 3.0)
Isolated DIO
4-ch digital input, 4-ch digital output (2500 VDC)
Displays
1 x VGA, supports 1920 x 1080 @ 60Hz 24bpp
1 x HDMI 1.4a, supports 1920 x 1080 @ 60Hz 24bpp
Audio
Line-Out
Power Connector
1 x 4 Pins, Terminal Block to support dual power input
Environment
- Operating Temperature
- 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow (Industry SSD)
Storage Temperature
- 40 ~ 85°C ( -40 ~ 185°F)
Relative Humidity
95% RH @ 40°C, non-condensing
Shock Protection
Operating, IEC 60068-2-27, 50G, half sine, 11ms ƒ
Vibration Protection
Operating, IEC 60068-2-64, 5Grms, random, 5 ~ 500Hz, 1 hr/axis
Ingress Protection
IP40
