TERZ NITE-RF Fast Ethernet

Unmanaged Industrial Ethernet Switch RJ45 with only 32.5 mm installation depth

TERZ NITE-RF Fast Ethernet
  • EigenschaftenEigenschaften
  • BeschreibungBeschreibung
  • Weitere InformationenWeitere Informationen
  • PDFPDF
  • Flexible use with 24 VAC/VDC
  • IP30 metal housing
  • Minimal installation depth 32.5 mm
  • Inrush current limitation
  • Temperature range -40 to +70°C
  • Stable mounting on 35mm DIN rail
  • Polarity protection
  • PROFINET suitable

Mit nur 32,5 mm Einbautiefe und einer Höhe von 105 mm, überzeugen die Industrial Ethernet Switches durch ihre extrem flachen und hochwertigen Gehäuse aus Aluminium. Die ultrakompakten Switches sind durch die Spannungsversorgung mit 24 VAC/VDC mit Einschaltstrombegrenzung und Verpolungsschutz in jedem Schaltschrank einsetzbar. Durch den reduzierten Platzbedarf und die Anordnung aller Anschlüsse auf der Vorderseite, können Schaltschränke und Verkabelung optimiert und so Kosten reduziert werden. Die hochwertige Hutschienenmontage aus Metall gewährleistet einen festen und sicheren Halt auf der Hutschiene. Wie alle TERZ Industrial Ethernet Switches sind auch die flachen NITE-RF durch zwei Frame Forwarding Varianten voll PROFINET geeignet.
ProdGrafik

General

    Switch:
    IEEE802.3 Store and Forward; non-blocking wire speed

    Auto-Negotiation, Auto-MDI-X, Auto-Polarity:
    Yes

    Frame size:
    2,048 Bytes

    MAC table size:
    2,000 addresses

    Quality of Service:
    Yes – 4 priority queues

    Energy Efficient Ethernet:
    No

    Flow Control:
    No

    PROFINET suitable:
    Yes

     Port count (RJ45) 5 8 16
     MTBF (SN 29500, Mio. h)
          2.709              2.005              1.109


     Frame Forwarding (Art.-No.) xxxxx0 xxxxx1
     LLDP, PTCP Delay 01:80:C2:00:00:0E       Forwarding Blocking
     RSTP BPDU 01:80:C2:00:00:00        Forwarding                Forwarding



Ethernet Interfaces

    IEEE Standards:
    802.3 10BaseT, 802.3u 100BaseT(X)

    Isolation:
    0.75 kVDC; Ethernet Port ↔ housing | Port ↔ Port

    Connection type:
    RJ45

    Port Count | Speed:
    5,8 Ports | 10/100 Mbit/s

    Cable length:
    100 m (Twisted Pair, 0.14 mm² - 0.22 mm², Cat 5)



Power supply / electronics

    Nominal voltage:
    Vin 24 VAC / 24 VDC

    Permitted voltage range:
    8 to 28 VAC / 9 to 36 VDC

    Connection type:
    3-pole pluggable, screw connector (+ - FE)

    Wire cross-section:
    0,08 to 2,5 (AWG 28 to 12)

    Supply circuit:
    SELV DIN 60950 (circuit breaker 10 A)

    Inrush current limiter:
    Yes

    Input fuse:
    Yes, Interrupting rating 50 A @ 125 VAC / VDC

    Polarity protection:
    Yes

    Power failure bridging:
    10 ms DIN 50155

    PCB Conformal Coating:
    No

    Protection category:
    III

    Isolation:
    0.75 kVDC; Vin ↔ Ethernet Ports | Vin ↔ housing

       Port count (RJ45) 5 8 16
      Power consumption (W)
       Idle | full load
          0.4 | 0.9              0.4 | 1.15              1,9 | 2,3
       Input current (mA)
       Idle | full load
    16 | 36 16 | 48       78 | 99
       Inrush current    (A) 8 8       8



Mechanical properties

    Housing material:
    Anodised aluminium, stainless steel

    Mounting:
    35 mm DIN rail

    IP Protection class (operation):
    IP30

      Port count (RJ45)       5 8 16
      Width (mm) 42 58 110
      Height (mm)     105          105          105
      Depth (mm) 32,5 32,5 32,5
      Weight (g) 205 255 405



EMC and environmental specifications

    Operating temperature:
    -40°C to 70°C

    Storage temperature:
    -40°C to 85°C

    Relative humidity (operation):
    0%-95% (not condensing)

    Relative humidity (storage):
    0%-95% (not condensing)

    Atmospheric pressure (operation):
    2,000 m (795 hPa)

    EMC immunity:
    DIN EN - 61000-6-2, 55024

    EMC radiated emission:
    DIN EN 61000-6-4, 55032

    Mechanical stability:
    DIN EN 61373



Approvals and certifications

    CE, DIN EN 60950-1



Status and diagnostic indicators

    LED:
    Power | Link/Activity per Port




ORDERING INFORMATION

Available Modules
Article Art.-No. Specification

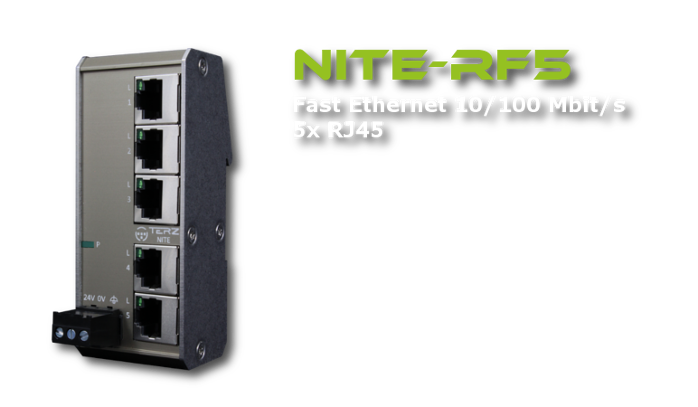

NITE-RF5-1100 111400 5xRJ45, IP30, FE, 24 V

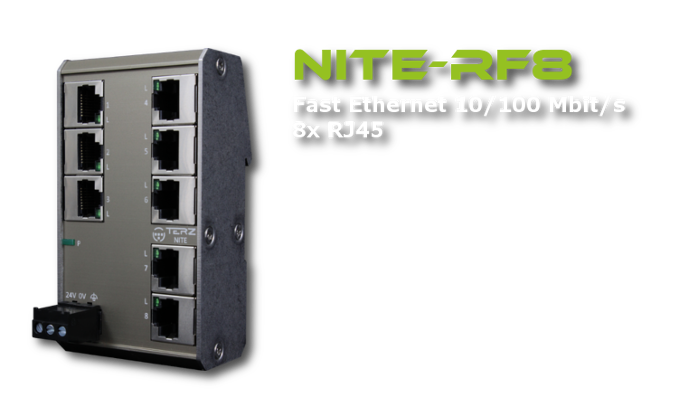

NITE-RF8-1100 111600 8xRJ45, IP30, FE, 24 V

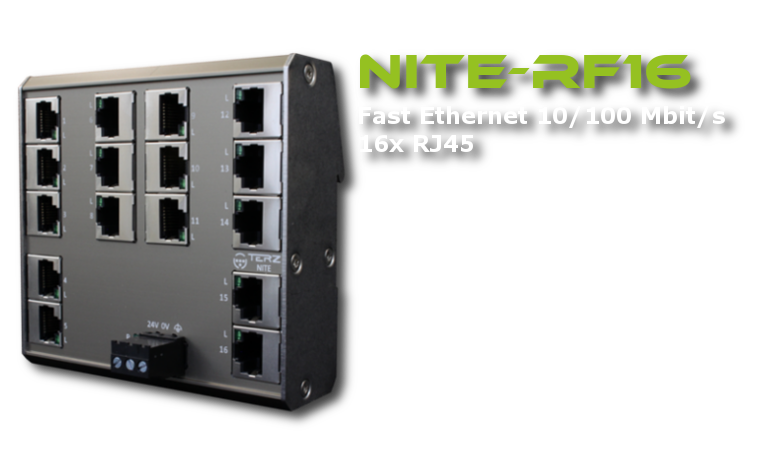

NITE-RF16-1100 111800 16xRJ45, IP30, FE, 24 V
NITE-RF5-1101 111401 5xRJ45, IP30, FE, 24 V, LLDP Blocking
NITE-RF8-1101 111601 8xRJ45, IP30, FE, 24 V, LLDP Blocking
NITE-RF16-1101 111801 16xRJ45, IP30, FE, 24 V, LLDP Blocking
