MOXA NPort S9650I Series

Eigenschaften

• 8/16-port RS-232/422/485 serial interface

• Supports up to 4 managed Ethernet switch ports (fiber available with some optional network modules)

• DNP3 and Modbus protocols supported

• IEC 61850-3, IEEE 1613 compliant (for power substations)

• Ethernet redundancy with Turbo Ring/Chain and RSTP/STP supported

• Real COM/TTY drivers for Windows and Linux

• IEEE 1588v2 and IRIG-B time synchronization functions

• Supports IEC 61850 MMS protocol

• Security features based on IEC-62443/NERC CIP

• -40 to 85°C wide operating temperature

Beschreibung

The NPort S9650I series 8/16-port RS-232/422/485 device servers, which come with a built-in full-function managed Ethernet switch, are designed specifically for the harsh environmental conditions found in electrical substations. With both fiber and wire Ethernet ports supported, the combination of device server plus Ethernet switch gives users the ability to easily install, manage, and maintain the NPort S9650I itself, as well as attached serial devices.


Electromagnetic Compatibility for Harsh Substation Environments

The NPort S9000 series supports a high level of surge protection to prevent damage from the types of power surges and EMI one finds in electrical substations and industrial automation applications. Combined with a -40 to 85°C operating temperature range and galvanized steel housing, the NPort S9000 is suitable for a wide range of industrial environoments.

Another plus is the NPort S9000’s dual power supplies, which provide both redundancy, as well as a wide range of voltage inputs. The WV models accept a power 24/48 VDC power input (ranging from 20 to 125 VDC), and the HV modesl accept a power input of 88 to 300 VDC and 85 to 264 VAC.


Power SCADA with IEC 61850 MMS for Easy Maintenance

The current trend in power SCADA applications is to control and monitor both IT devices (switches, routers, etc.) and IEDs (sensors, actuators, etc.) with the MMS protocol. Contrast this with the more traditional management approach of using SNMP for IT devices and MMS for IEDs. In fact, SIs may even need to manage a variety of legacy devices that use proprietary communications protocols. The NPort S9000 device servers are the world’s first device servers to integrate MMS into an IT-type device designed specifically for power SCADA applications. The NPort S9000 even supports using MMS to monitor serial legacy devices.


Cybersecurity Features Based on IEC-62443/NERC CIP

The NPort S9650I series has security features based on IEEE 62443/ NERC CIP to provide a high level of cybersecurity. Protecting missioncritical networks from cyber attacks is a high-priority for industrial automation applications, which can suffer large losses due to extended network downtime.


Supports IEEE 1588v2 and IRIG-B Time Synchronization Functions

The NPort S9650I series, which has a modular design that supports IEEE 1588 and IRIG-B time synchronizaion, is able to interconnect and synchronize multiple types of intelligent electronic devices (IEDs) thatuse different communication protocols. The time source is provided via IEEE 1588 v2 and converted to IRIG-B for distribution to the IEDs via the serial ports or via a dedicated IRIG-B BNC connector.


Ring Redundancy at the Device Level

Device-level communication networks for industrial automation are very critical since they are used to control and monitor device processes. The reliability of these communications depends on ring redundancy at the device level, which is designed to provide fast network fault detection and reconfiguration to support the most demanding control applications. The NPort S9000 series integratesa full-function NPort device server with an industrial switch to carry serial and Ethernet devices at the same time. In addition, the NPort S9000 can also achieve ring redundancy with standard STP/RSTP and Moxa’s proprietary Turbo Ring or Turbo Chain 2 redundancy protocols. This all-in-one design can be used to optimize and simplify your device network and enhance reliability.

Weitere Informationen

• General Specifications
• Port Summary
Serial Ports	8/16 RS-232/422/485 ports
Ethernet Switch Ports	2 built-in RJ45 Ethernet ports. Add 2 additional Ethernet ports with optional expansion modules: Option 1: Expansion module with 2 RJ45 Ethernet ports Option 2: Expansion module with 2 fiber Ethernet ports Option 3: Expansion module with BNC connectors for IRIG-B time sync
Magnetic Isolation Protection	1.5 kV built in
Console Ports	1 (10-pin RJ45 connector)
• Physical Characteristics
Housing	Metal
Weight	5.15 kg (11.35 lb)

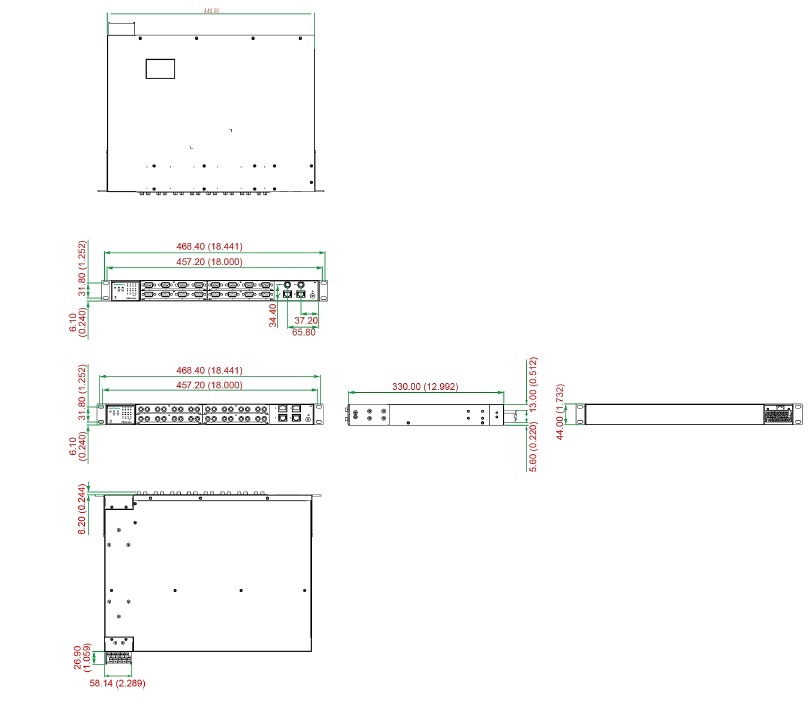

Dimensions	457 x 32 x 330 mm (18.00 x 1.25 x 12.99 in)
• Environmental Limits
Operating Temperature	-40 to 85°C (-40 to 185°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
• Power Requirements
Input Voltage	110/220 VAC/VDC (88 to 300 VDC, 85 to 264 VAC)
Input Current	0.27 A @ 110 VDC, 0.415 A @ 110 VAC
• Standards and Certifications
Safety	UL 61010
EMC	EN 61000-6-2/61000-6-4
EMI	CISPR 22, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs
• Device Server Specifications
• Serial Interface
Number of Ports	8 or 16
Serial Standards	RS-232/422/485
Connector	DB9 male, DB9 female, multi-mode fiber (ST)
Serial Line Protection	2 kV isolation protection
RS-485 Data Direction Control	ADDC® (Automatic Data Direction Control)
Terminator for RS-485	120 Ω
Console Port	Dedicated RS-232 console port (10-pin RJ45)
• Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS and XON/XOFF
Baudrate	50 bps to 921.6 Kbps
• Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
• Software
Configuration Options	Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
Windows Real COM Drivers	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers	SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers	Linux 2.4.x, 2.6.x, 3.x, 4.x
Android API	Android 3.1.x and later
Operation Modes	Real COM, TCP Server, TCP Client, UDP, RFC2217, Modbus, DNP3, DNP3 Raw Socket
Management	SNMP MIB-II, IEC 61850 MMS
• Reliability
Alert Tools	Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger	Built-in WDT (watchdog timer)
• MTBF (mean time between failures)
Time	NPort S9650I-16B-2HV-T: 161,039 hrs NPort S9650I-16-2HV-T: 165,308 hrs NPort S9650I-16F-2HV-T: 264,628 hrs NPort S9650I-16F-2HV-E-T: 262,639 hrs
Standard	Telcordia (Bellcore) Standard TR/SR
• Ethernet Switch Specifications
• Ethernet Interface
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1x for Authentication IEEE 802.3ad for Port Trunk with LACP
Network Protocols	ICMP, IPv4, TCP, UDP, ARP, Telnet, DNS, HTTP, SMTP, SNTP, IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 82, BootP, TFTP, SNTP, SMTP, RARP, GMRP, LACP, RMON
MIB	MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control	IEEE 802.3x flow control, back pressure flow control interface
• Switch Properties
Priority Queues	4
Max. Number of Available VLANs	64
VLAN ID Range	VID 1 to 4094
IGMP Groups	256
Cybersecurity	Ready for NERC CIP compliance system development • Supports IEC 62443 • Supports port access control list: MAC, 802.1x authentication • Supports RADIUS, TACACS+ • Supports Syslog for system/event
• Optical Fiber Interface
Table
• Switch Interface
RJ45 Ports	10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Alarm Contact	1 relay output with current carrying capacity of 1 A @ 24 VDC

ORDERING INFORMATION
Available Models
NPort S9650I-8-2HV-E-T	8-port RS-232/422/485 rugged device server, 2 10/100M Ethernet ports with IEEE 1588v2 support, 88-300 VDC or 85-264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet RJ45 module
NPort S9650I-8-2HV-MSC-T	8-port RS-232/422/485 rugged device server, 2 10/100M Ethernet ports with IEEE 1588v2 support, 88-300 VDC or 85-264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet multimode SC connector fiber module
NPort S9650I-8-2HV-SSC-T	8-port RS-232/422/485 rugged device server, 2 10/100M Ethernet ports with IEEE 1588v2 support, 88-300 VDC or 85-264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet singlemode SC connector fiber module
NPort S9650I-8B-2HV-IRIG-T	8-port RS-232/422/485 rugged device server with IRIG-B signal output on the serial ports, 2 10/100M Ethernet ports with IEEE 1588v2 support, 88-300 VDC or 85-264 VAC, -40 to 85°C operating temperature, with IRIG-B BNC module
NPort S9650I-8F-2HV-E-T	8-port RS-232/422/485 rugged device server with multimode ST connectors on the serial ports, 2 10/100M Ethernet ports with IEEE 1588v2 support, 88-300 VDC or 85-264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet RJ45 module
NPort S9650I-8F-2HV-MSC-T	8-port RS-232/422/485 rugged device server with multimode ST connectors on the serial ports, 2 10/100M Ethernet ports with IEEE 1588v2 support, 88-300 VDC or 85-264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet multimode SC connector fiber module
NPort S9650I-8F-2HV-SSC-T	8-port RS-232/422/485 rugged device server with multimode ST connectors on the serial ports, 2 10/100M Ethernet ports with IEEE 1588v2 support, 88-300 VDC or 85-264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet singlemode SC connector fiber module
NPort S9650I-16-2HV-E-T	16-port RS-232/422/485 rugged device server, 2 10/100M Ethernet ports with IEEE 1588v2 support, 88-300 VDC or 85-264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet RJ45 module
NPort S9650I-16-2HV-MSC-T	16-port RS-232/422/485 rugged device server, 2 10/100M Ethernet ports with IEEE 1588v2 support, 88-300 VDC or 85-264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet multimode SC connector fiber module
NPort S9650I-16-2HV-SSC-T	16-port RS-232/422/485 rugged device server, 2 10/100M Ethernet ports with IEEE 1588v2 support, 88-300 VDC or 85-264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet singlemode SC connector fiber module
NPort S9650I-16B-2HV-IRIG-T	16-port RS-232/422/485 rugged device server with IRIG-B signal output on the serial ports, 2 10/100M Ethernet ports with IEEE 1588v2 support, 88-300 VDC or 85-264 VAC, -40 to 85°C operating temperature, with IRIG-B BNC module
NPort S9650I-16F-2HV-E-T	16-port RS-232/422/485 rugged device server with multimode ST connectors on the serial ports, 2 10/100M Ethernet ports with IEEE 1588v2 support, 88-300 VDC or 85-264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet RJ45 module
NPort S9650I-16F-2HV-MSC-T	16-port RS-232/422/485 rugged device server with multimode ST connectors on the serial ports, 2 10/100M Ethernet ports with IEEE 1588v2 support, 88-300 VDC or 85-264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet multimode SC connector fiber module
NPort S9650I-16F-2HV-SSC-T:	16-port RS-232/422/485 rugged device server with multimode ST connectors on the serial ports, 2 10/100M Ethernet ports with IEEE 1588v2 support, 88-300 VDC or 85-264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet singlemode SC connector fiber module
