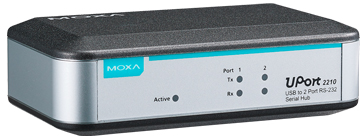

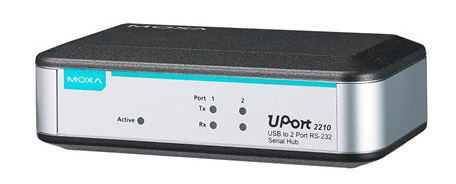

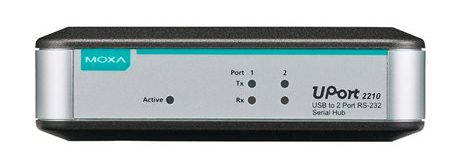

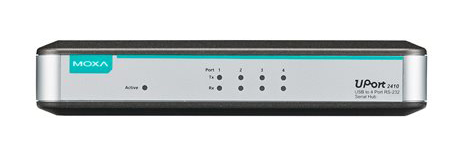

MOXA UPort 2210 / UPort 2410

2 and 4-port RS-232 USB-to-serial converters

MOXA UPort 2210 / UPort 2410
  • EigenschaftenEigenschaften
  • BeschreibungBeschreibung
  • Weitere InformationenWeitere Informationen
  • PDFPDF
  • Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
  • 921.6 Kbps maximum baudrate for super fast data transmission
  • Additional I/O and IRQ not needed
  • Built-in 15 KV ESD protection for all serial ports
  • Drivers provided for Windows and Linux
  • Supports Fixed-Base COM Utility for setting the initial extended COM port number
  • LEDs for easy monitoring

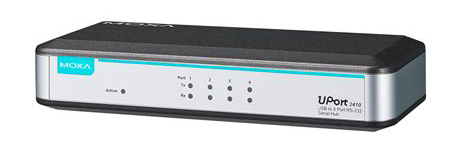

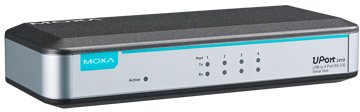

Die USB-zu-Seriell-Konverter UPort™ 2410 ermöglichen den Anschluss von vier RS-232-Geräten an Ihren Laptop/Ihre Arbeitsstation über den USB-Port (Universal Serial Bus). Die UPort™ 2410-Konverter sind eine kostengünstige Lösung für neue und ältere RS-232-Geräte und eignen sich perfekt für mobile, Instrumenten- und Point-of-Sale-Anwendungen.
ProdGrafik

USB Interface

    Compliance:
    USB 1.1/2.0 compliant

    Connector:
    USB type B

    Speed:
    480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)


Serial Interface

    Number of Ports:
    UPort 2210: 2
    UPort 2410: 4

    Serial Standards:
    RS-232

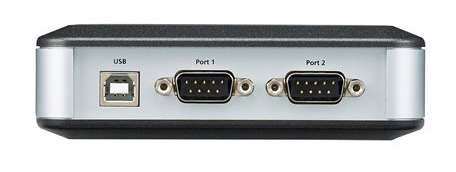

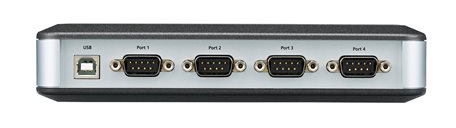

    Connector:
    DB9 male


Performance

    Baudrate:
    50 bps to 921.6 kbps


Serial Communication Parameters

    Data Bits:
    5, 6, 7, 8

    Stop Bits:
    1, 1.5, 2

    Parity:
    None, Even, Odd, Mark, Space

    Flow Control:
    RTS/CTS, XON/XOFF

    I/O Address:
    Assigned by BIOS

    IRQ:
    Assigned by BIOS

    FIFO:
    16 bytes


Serial Signals

    RS-232:
    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND


Operating Systems

    Windows Real COM Drivers:
    Windows 2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2012 (x64)

    Mac Driver:
    Mac OS X

    Linux Real TTY Drivers:
    Linux 2.6.x, 3.x

Note:
Please refer to Moxa’s website for the latest driver support information.


Physical Characteristics

    Housing:
    Polycarbonate (PC)

    Weight:
    Product only:
    UPort 2210: 120 g (0.26 lb)
    UPort 2410: 210 g (0.46 lb)
    Packaged:
    UPort 2210: 325 g (0.72 lb)
    UPort 2410: 455 g (1 lb)

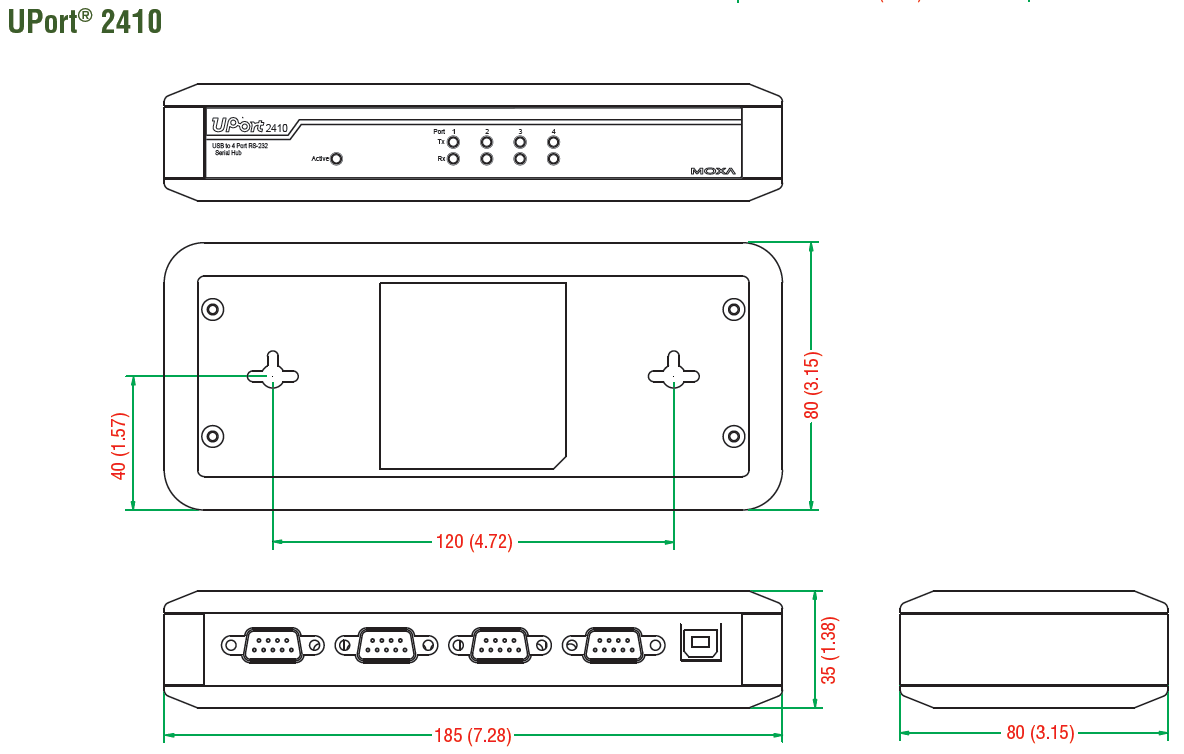

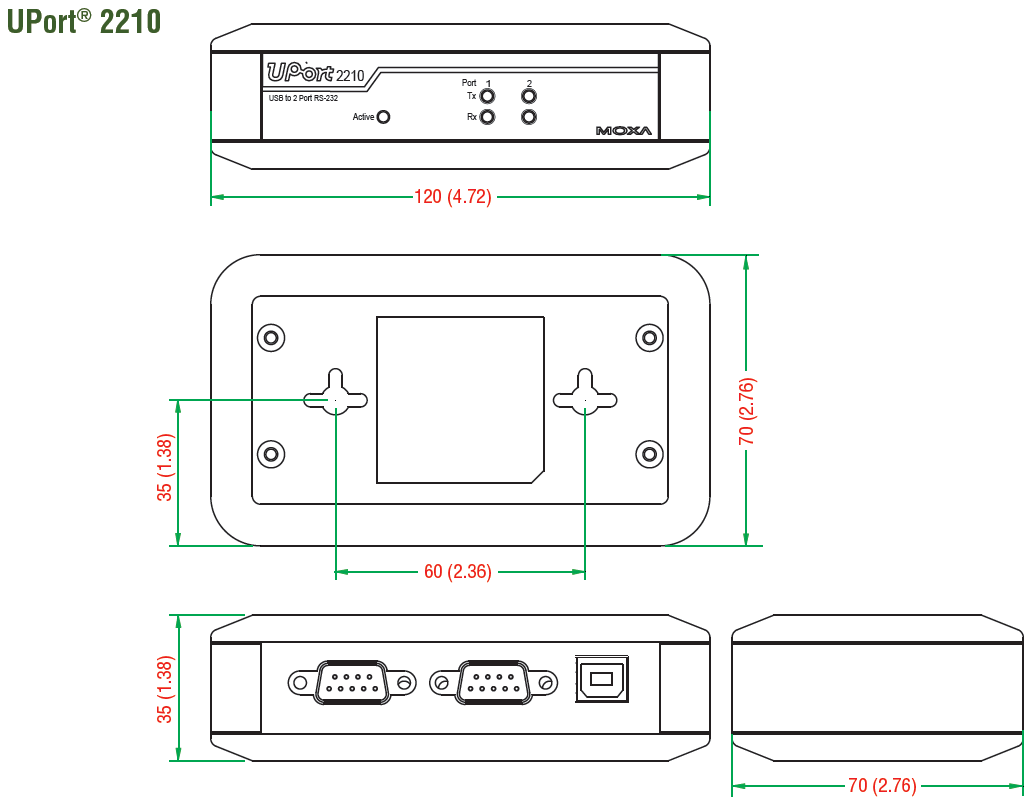

    Dimensions:
    UPort 2210: 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)
    UPort 2410: 80 x 35 x 185 mm (3.15 x 1.38 x 7.28 in)


Environmental Limits

    Operating Temperature:
    0 to 55°C (32 to 131°F)

    Storage Temperature:
    -20 to 75°C (-4 to 167°F)

    Ambient Relative Humidity:
    5 to 95% (non-condensing)

    Altitude:
    Up to 2000 m

Note:
Please contact Moxa if you require products guaranteed to function properly at higher altitudes.


Standards and Certifications

    Safety:
    UL 60950-1

    EMC:
    CE, FCC

    EMI:
    EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, FCC Part 15
    Subpart B Class B

    EMS:
    EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC-61000-4-6, IEC 61000-4-8, IEC-61000-4-11

    Green Product:
    RoHS, CRoHS, WEEE


Power Requirements

    Power Consumption:
    UPort 2210: 140 mA @ 5 VDC
    UPort 2410: 240 mA @ 5 VDC


MTBF (mean time between failures)

    Time:
    UPort 2210: 4,221,778 hrs
    UPort 2410: 3,901,775 hrs

    Database:
    Telcordia (Bellcore), GB


Available Models
UPort™ 2210: 2-port RS-232 USB-to-serial converter
UPort™ 2410: 4-port RS-232 USB-to-serial converter
