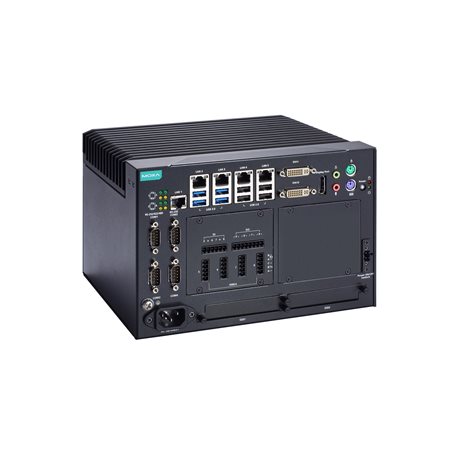

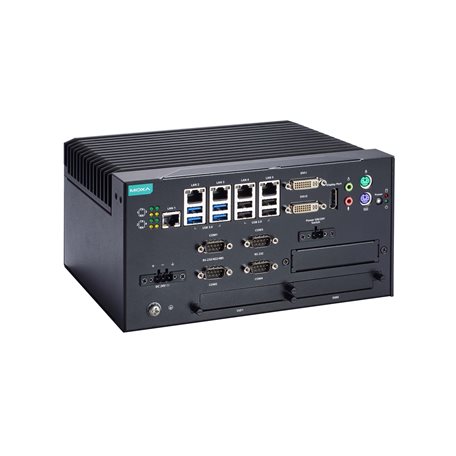

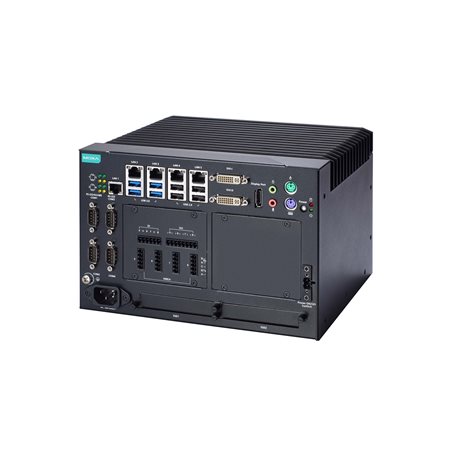

MOXA MC-7400 Series
x86 fanless, industrial box computer
- 6th Gen. Intel® Core™ i5 processor
- DDR4 SO-DIMM memory up to 32 GB
- 3 independent displays (1 x DVI-I, 1 x DVI-D, 1 x DisplayPort)
- Various I/O interfaces, including 9 USB ports, 5 LAN ports, and 4 COM ports
- 2 removable 2.5” SSD storage bays
- AC or DC power models available
- Supports Win 10 IoT and Debian 9 operating systems
- Supports Moxa Proactive Monitoring utility for system status monitoring
The MC-7400 Series marine computers are powered by the 6th generation Intel Core™ i processor, delivering a full range of I/O connectivity, including NMEA 0183 ports, serial ports, Gigabit ethernet ports, as well as USB 2.0/3.0 ports and a miniPCI slot for extensions. The MC-7400 is designed to provide outstanding PC performance, bringing a new level of flexibility and control to marine applications.
Proactive Monitoring Function
Moxa Proactive Monitoring is a small-footprint, resource-friendly, easy-to-use utility that allows users to track a number of system parameters. Users can view the current parameter values for these key parts by simply clicking on the icons corresponding to the parameters in the user interface. User-defined key part indicators (KPIs) are used to monitor the computer’s key parts. Visible and/or audio alerts are triggered automatically via relay and SNMP traps when these KPIs exceed their preset threshold values, making it extremely convenient for operators to avoid system downtime by setting up predictive maintenance tasks well in advance.
Computer
CPU
Intel® Celeron® Processor G3902E (2M Cache, 1.60 GHz)
Intel® Core™ i5-6442EQ Processor (6M Cache, up to 2.70 GHz)
System Chipset
Intel QM170 Integrated GFX Gen 9
Graphics Controller
Core I5: Intel® HD Graphics 530
Celeron: Intel® HD Graphics 510
System Memory Slot
SODIMM DDR4 slot x 2
Supported OS
Windows 10 Embedded IOT Ent 2016 LTSB Value EPKEA
Linux Debian 9
Note: OS available by CTOS
Storage Slot
2.5" HDD/SSD slots x 2
Computer Interface
Ethernet Ports
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 5
Serial Ports
RS-232 ports x 2 (DB9 male)
RS-232/422/485 ports x 2, software selectable (DB9 male)
USB 2.0
USB 2.0 hosts x 5, type-A connectors
USB 3.0
USB 3.0 hosts x 4, type-A connectors
Audio Input/Output
Line in x 1, Line out x 1, 3.5 mm phone jack
Digital Input
DIs x 4
Only for MC-7420 series
Digital Output
DOs x 4
Only for MC-7420 series
NMEA Port
NMEA 0183 ports x 4 (terminal block)
Only for MC-7420 series
Video Output
DVI-D x 1, 29-pin DVI-D connectors (female)
DVI-I x 1, 29-pin DVI-I connectors (female)
Display ports x 1
PS/2
Keyboard PS/2 x 1 + Mouse PS/2 x 1
Relays
Connector
Screw-fastened Euroblock terminal
Contact Current Rating
Resistive load: 2 A @ 30 VDC
Contact Resistance
50 milli-ohms (max.)
Initial Insulation Resistance
1000 mega-ohms (min.) @ 500 VDC
Mechanical Endurance
100000000 operations
Minimum Permitted Load
20 A @ 30 VDC
LED Indicators
System
Power x 1
Storage x 1
LAN
2 per port (10/100/1000 Mbps)
Serial
2 per port (Tx, Rx)
Serial Interface
Baudrate
50 bps to 115.2 kbps
Connector
DB9 male
Data Bits
5, 6, 7, 8
Flow Control
ADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF
Isolation
N/A
Parity
None, Even, Odd, Space, Mark
NMEA Interface
Base Serial Standard:
NMEA 0183: RS-422
Baudrate: 4800 bps
Data Bits: 8
Handshake: None
Optical Isolation Protection: 3 kV
Parity: None
Stop Bits: 1, 1.5, 2
Power Parameters
Power Consumption
100 W
Input Voltage
100 to 240 VAC, 24 VDC
Power Connector
Terminal block (for DC models)
Reliability
Automatic Reboot Trigger
Built-in WDT
Physical Characteristics
Weight
MC-7410 series: 5500 g (12.12 lb)
MC-7420 series: 6000 g (13.23 lb)
Dimensions (with ears)
MC-7410 Series: 240 x 209 x 125 mm (9.45 x 8.23 x 4.92 in)
MC-7420 Series: 240 x 209 x 160 mm (9.45 x 8.23 x 6.3 in)
Housing
Metal
Environmental Limits
Operating Temperature
-25 to 55°C (-13 to 131°F)
Storage Temperature (package included)
-30 to 60°C (-22 to 140°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
Maritime
IEC 60945
Safety
CE, IEC 62368-1, UL 60950-1
Radio Frequency
FCC
EMC
EN 55032/24
EMI
CISPR 22, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Green Product
RoHS, CRoHS, WEEE
