MOXA NPort 5210

Standard TCP/IP-Protokolle und Auswahl der Betriebsmodi

Moxas NPort® 5200-Geräteserver bieten die Betriebsmodi TCP-Server, TCP-Client und UDP und stellen somit die Kompatibilität der Netzwerksoftware sicher, die eine Standardnetzwerk-API (Winsock, BSD Sockets) nutzt.

Real COM/™Y-Treiber für vorhandene Software

Mit den Real COM/™Y-Treibern, die jedem NPort® beiliegen, kann Software für die Kommunikation mit COM/™Y-Ports direkt und nahtlos in ein TCP/IP-Netzwerk integriert werden. Dies ist eine ausgezeichnete und problemlose Möglichkeit, Ihre Softwareinvestitionen zu erhalten und die Vorzüge der Vernetzung serieller Geräte zu nutzen.

Steuern serieller Remote-Geräte mit TCP/IP oder herkömmlichem COM/™Y-Port

Durch Angabe der IP-Adresse und Port-Nummer des NPort® 5200 kann eine Netzwerksockel-API über das Netzwerk von jedem Host-Computer, der TCP/IP unterstützt, Zugriff auf das verbundene serielle Gerät erhalten. Für ältere Windows- oder Linux-Software auf Basis von COM oder ™Y bieten die Moxa COM/™Y-Treiber eine Möglichkeit zum reibungslosen Betrieb über das Netzwerk.

Easy installation and configuration

NPort 5210 serial device server supports automatic IP configuration protocols (DHCP, BootP) and manual configuration through the Web Browser console. Both methods ensure quick and effective installation. And with NPort 5210’s Windows Utility, your installation job becomes more pleasant than ever, since all system parameters can be stored and copied to many other device servers.

Ethernet Interface

Number of Ports
1

Speed
10/100 Mbps, auto MDI/MDIX

Connector
8-pin RJ45

Magnetic Isolation Protection
1.5 kV built-in


Serial Interface

Number of Ports
2

Serial Standards
NPort 5210: RS-232
NPort 5230: 1 RS-232 port, 1 RS-422/485 port
NPort 5232/5232I: RS-422/485

Connector

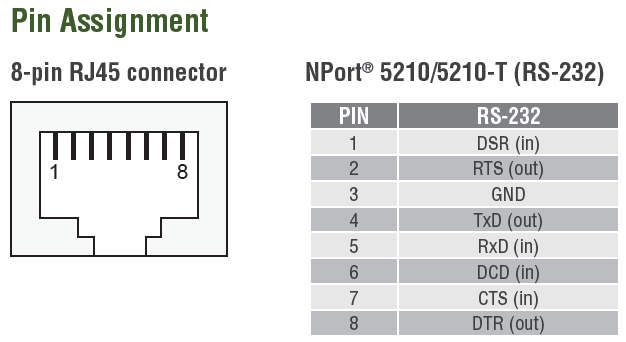

NPort 5210: RJ45 (8 pins)
NPort 5230/5232/5232I: Terminal Block (5 contacts per port)

Serial Line Protection
2 kV isolation protection (NPort 5232I/5232I-T)

RS-485 Data Direction Control
ADDC® (automatic data direction control)


Serial Communication Parameters

Data Bits
5, 6, 7, 8

Stop Bits
1, 1.5, 2

Parity
None, Even, Odd, Space, Mark Flow Control RTS/CTS (RS-232 only), DTR/DSR (NPort 5210 only), XON/XOFF

Baudrate
110 bps to 230.4 kbps


Serial Signals

RS-232
NPort 5210: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
NPort 5230: TxD, RxD, RTS, CTS, GND

RS-422
Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w
Data+, Data-, GND

Software

Network Protocols
ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, H™P, SMTP, SNTP

Configuration Options
Web Console, Serial Console (NPort 5210/5230 only), Telnet Console, Windows Utility

Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Fixed ™Y Drivers
SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Linux Real ™Y Drivers
Linux 2.4.x, 2.6.x, 3.x


Physical Characteristics

Housing
Metal

Weight
NPort 5210: 340 g
NPort 5230/5232: 360 g
NPort 5232I: 380 g

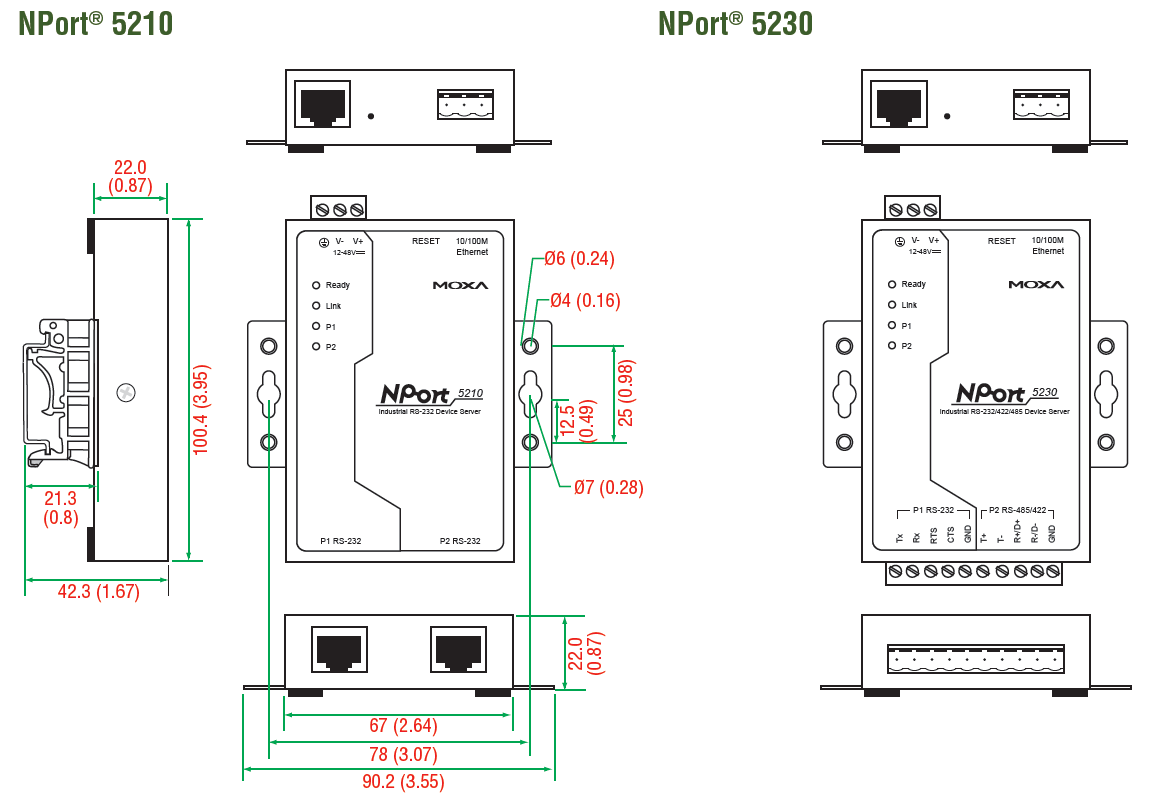

Dimensions
NPort 5210/5230/5232:
Without ears: 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in)
With ears: 90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in)

NPort 5232I:
Without ears: 67 x 100.4 x 35 mm (2.64 x 3.95 x 1.37 in)
With ears: 90 x 100.4 x 35 mm (3.54 x 3.


Environmental Limits

Operating Temperature
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature
-40 to 75°C (-40 to 167°F)

Ambient Relative Humidity
5 to 95% (non-condensing)

Altitude
Up to 2000 m

Note Please contact us if you require products guaranteed to function properly at higher altitudes.


Power Requirements

Input Voltage
12 to 48 VDC

Power Consumption
NPort 5210: 325 mA @ 12 V, 190 mA @ 24 V
NPort 5230: 325 mA @ 12 V, 190 mA @ 24 V
NPort 5232: 280 mA @ 12 V, 150 mA @ 24 V
NPort 5232I: 365 mA @ 12 V, 200 mA @ 24 V


Standards and Certifications

Safety
UL 60950-1, EN 60950-1

EMC
CE, FCC

EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A

EMS
EN 61000-4-2 ESD: contact 4 kV; air 8 kV
EN 61000-4-3 RS: 3 V/m (80 MHz to 1 GHz)
EN 61000-4-4 EFT: Power 1 kV; Signal 0.5 kV
EN 61000-4-5 Surge: AC 1 kV
EN 61000-4-6 CS: 3 V
EN 61000-4-8
EN 61000-4-11

Marine
DNV

Medical (NPort 5210 only)
EN 60601-1-2 Class B, EN 55011


Reliability

Alert Tools
Built-in buzzer and RTC (real-time clock)

Automatic Reboot Trigger
Built-in WDT (watchdog timer)

MTBF (mean time between failures)
NPort 5210: 134,850 hrs
NPort 5230: 106,955 hrs
NPort 5232: 102,344 hrs
NPort 5232I: 87,083 hrs

Ordering
NPort 5210	2-Port RS-232 Serial Device Server
Above item includes:	1 2-port Serial Device Server Quick Installation Guide NPort Document and Software CD-ROM Power Cord
Accessories
DK-35A	DIN-Rail Mounting Kit (35 mm)
P/N: 111170000255	Power Adaptor
DR-X-24	DIN Rail Power Supply (X for different power rates)
CBL-RJ45M9-150	8-pin RJ45 male DB9 cable, 150 cm
CBL-RJ45F9-150	8-pin RJ45 to female DB9 cable, 150 cm
CBL-RJ45M25-150	8-pin RJ45 to male DB25 cable, 150 cm
CBL-RJ45F25-150	8-pin RJ45 to female DB25 cable, 150 cm

Programmable version - NPort 5210P ( - EOL Nov 2021)

NPort 5200-P series is a professional Programmable Communication Gateway that makes your RS-232/422/485 devices network-ready. The programmable nature of this product makes it a value-added developing platform suitable for real-time IP control and protocol conversion applications. NPort 5200-P Series is a flexible, reliable, cost-effective, andcustomizable solution that gives system integrators greater design flexibility. Two models are available. NPort 5210-P has 1 Ethernet port and 2 RS-232 ports that support full modem control signals (TxD, RxD, RTS, CTS, DTR, DSR, DCD, and GND). NPort 5230-P has 1 Ethernet port, 1 RS-232 port (supports TxD, RxD, RTS, CTS, and GND), and 1 RS-422/485 port. All ports of both models use 8-pin RJ45 connectors.

Target Markets :

• Industrial Automation
• Factory Automation
• Building Automation
• Transportation
• Security
• SCADA Systems
• Research Institutes
• Medical Automation
• Military

Features :

• NPort 5200-P’s programmable nature makes it suitable for all industrial automation applications
• High speed RS-232/422/485 and Ethernet interfaces for serial device networking
• Customizable programming for IA communication protocol conversion
• Can be controlled and managed from a remote location
• Reliable system kernel suitable for secure and long-running SCADA-type applications
